The complete set of equipment of automatic zinc-stripping production line
Page view:
The complete set of automatic zincstripping devices, independently developed by CINF, has been checked and accepted by the competent department and industry experts. The automatic multifunctional crane and zinc cathode automatic conveyor line has successfully realized engineering application with various indicators reaching the international leading level.
The automatic zincstripping technology and the complete set of equipment mainly consist of automatic multifunctional crane, automatic zincstripping unit, cathode automatic cleaning unit, anode trolley, anode levelling and cleaning device, and the correlative and interactive automatic control between each equipment. It’s a complete set of equipment integrated with mechanism, electrical control, hydraulic pressure and airoperation.
The technology has obtained 11 national patents and is being applied for another 20 ones. These 11 patents are:
No. |
Patents name |
Patents certificate No. |
1 |
A belt conveyor |
ZL 201020610948.6 |
2 |
A type of belt conveyor |
ZL 201020611020.X |
3 |
A beltdrive tension device |
ZL201120414628.8 |
4 |
The zinc cathode automatic conveying line |
ZL201120265315.0 |
5 |
A chained conveyor, utility model |
ZL 201220462039.1 |
6 |
A type of zinc cathode automatic conveying line |
ZL201320309399.2 |
7 |
A type of zinc cathode automatic hoist |
ZL201320484714.5 |
8 |
The counter electrode crane |
ZL200920259481.2 |
9 |
A type of anodeplate lifting appliance and crane |
ZL201120013558.5 |
10 |
An automatic liquid device |
ZL201320067000.4 |
11 |
A chainedmode conveyor tension control apparatus |
ZL201320067114.9 |

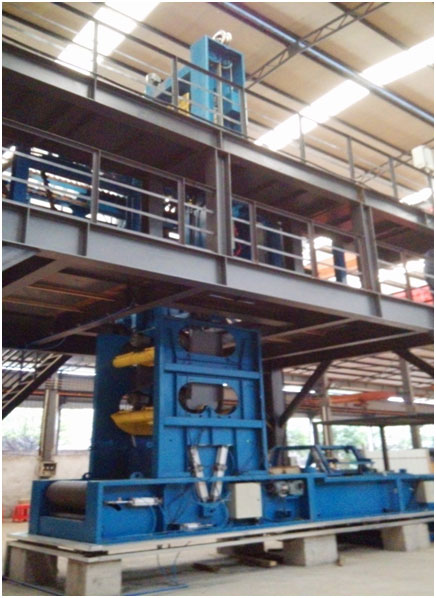

The prototype of automatic zinc stripping unit

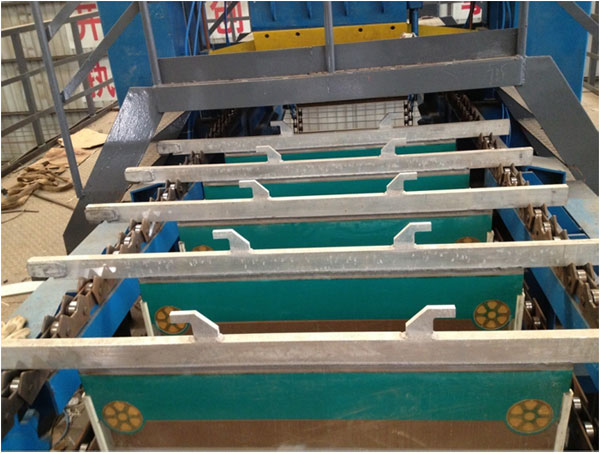

The chain conveyor of automatic zincstripping unit

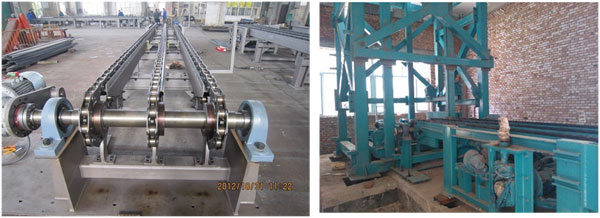

The zinc cathode automatic conveying line
(applied in the 100kt/a electrolytic zinc oxygenpressure project of Western Mining Group in 2013)

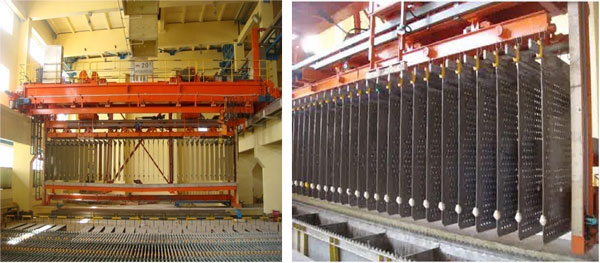

The automatic multifunctional crane
(applied in Huize PbZn Plant upgrading project of Yunnan Chihongxinzhe Co., Ltd in 2013)
